Animations

fht-compositor has many animations to make different interactions fluid. You can fine-tune the animation curves to you liking for snappy animations or get nice buttery smooth transitions.

Animation curves

An animation is simply a function of time t that interpolates between two values: start and end. You can configure said function to your liking.

TIP

When deserializing the configuration, we make use of tagged unions. Depending on the value that you assign to the curve field, we automatically detect which kind of curve you want. Note however that you must specify all fields of for the configuration to be (re)loaded successfully

Pre-defined easings

This is by far the simplest option. All easings on on easings.net are available, but rename them from camelCase to kebab-case, for example easeInQuint becomes ease-in-quint

You must give a duration to the animation with a pre-defined easing.

[animations.window-geometry]
curve = "ease-out-quint"
duration = 450 # in milliseconds

Custom cubic curve

You can also use your own easing curves in the form of a custom cubic Bezier curve. There are four control points

1. x=0, y=0 (this point is forced to keep the values in bound)
2. Custom point 1, p1
3. Custom point 2, p2
4. x=1, y=1 (this point is forced to keep the values in bound)

Springs

The last kind of curves we support are spring curves. They use a physical model of a spring that is identical to libadwaita's SpringAnimation.

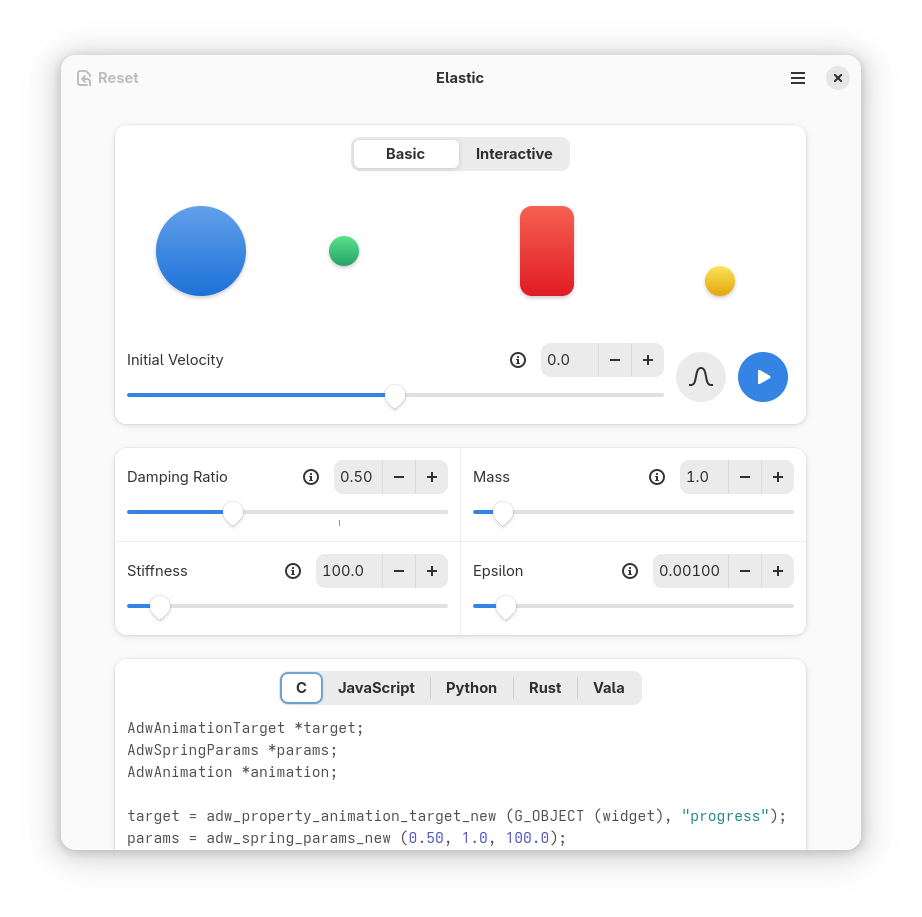

Since they are much more tweakable, you'd rather use something like Elastic to tweak the parameters yourself, and get a preview of what the curve will look like, aswell as the total animation time.

Note however that you should be conservative with the valuess you pass into this animation, as it can really quickly cause values to overshoot/undershoot to infinity, and potentially causing crashes (integer overflows).

[animations.workspace-switch]
curve = { clamp = true, damping-ratio = 1, initial-velocity = 5, mass = 1, stiffness = 700 }
# NOTE: The duration given here is not taken into account at all!
# The spring's simulation duration will be used instead
duration = 1000000000000

Configuration options

disable

Disable all animations. Useful if you want the snappiest most responsive experience, of if animations take a toll on your device performance.

TIP

Each animation has an individual disable toggle!

---

window-geometry

Animation settings used for window geometry changes: both location and size are animated.

Default curve:

[animations.window-geomtry.curve]
initial-velocity = 1.0
clamp = false
mass = 1.0
damping-radio = 1.2
stiffness = 800.0
epsilon = 0.0001

---

window-open-close

Animation settings used for opening and closing of windows. The window open-close animation makes windows pop in/out from their center, and fades them in/out.

Default curve:

[animations.window-open-close.curve]
initial-velocity = 1.0
clamp = false
mass = 1.0
damping-radio = 1.2
stiffness = 800.0
epsilon = 0.0001

---

workspace-switch

Animations settings for switching workspaces. The animation slides workspaces in/out the output's edges depending on the workspace index relative to the one you're switching to.

workspace-switch.direction: Can either be horizontal or vertical

Default curve:

[animations.workspace-switch.curve]
initial-velocity = 1.0
clamp = false
mass = 0.85
damping-radio = 1.0
stiffness = 600.0
epsilon = 0.0001
